Grandstream HD Video Door System

Version: 1.0.5 ENG
Date: November 13, 2024
Product: CyberTwice CyberGate with Grandstream HD Video Door System

---

Grandstream HD Video Door System Overview

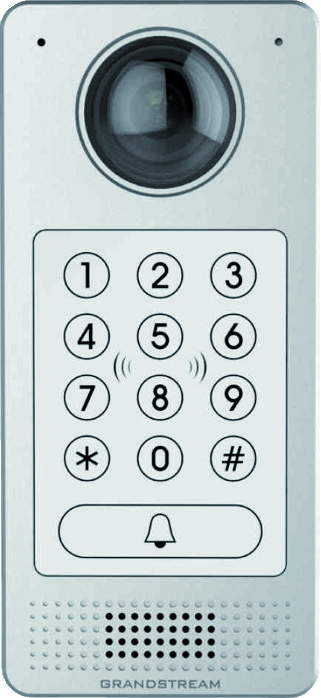

This document uses the Grandstream GDS3710 as the reference device. The Grandstream GDS3712 is also compatible with CyberGate.

Security Features

The Grandstream is certified for secure communication with CyberGate using:

• SIP TLS (Transport Layer Security)
• SRTP (Secure Real-time Transport Protocol)

Recommendation: Start by configuring the Grandstream using the basic steps first. If the connection and test calls are successful, modify the configuration to use secure communication (see Secure Communication section).

Document Contents

Section	Description
Configuration Steps	Steps to configure the Grandstream for CyberGate
Multi-ring Group Setup	Configure call routing to Teams users
Secure Communication	Enable encrypted SIP-TLS connection
Appendix: CyberGate App	Installation and usage of the CyberGate Teams app

CyberGate Teams App Features

The CyberGate app for Microsoft Teams provides:

• 🚪 Open door — Click a button to open the intercom door during a call
• 📊 Device status — View device online/offline status and initiate calls with one click
• 👥 Availability — Set your status in CyberGate Multi-ring groups

Recommendation: Installation of the CyberGate app for Microsoft Teams is highly recommended.

---

Configuration Steps

Step 1: Connect to the Grandstream

1. Connect the Grandstream to the network
2. Power it on
3. Open a web browser and navigate to the device’s IP address
4. Sign in as ‘admin’ with the configured or supplied password

After successful login, the Status → System Info menu is shown.

---

Step 2: Configure Door System Settings

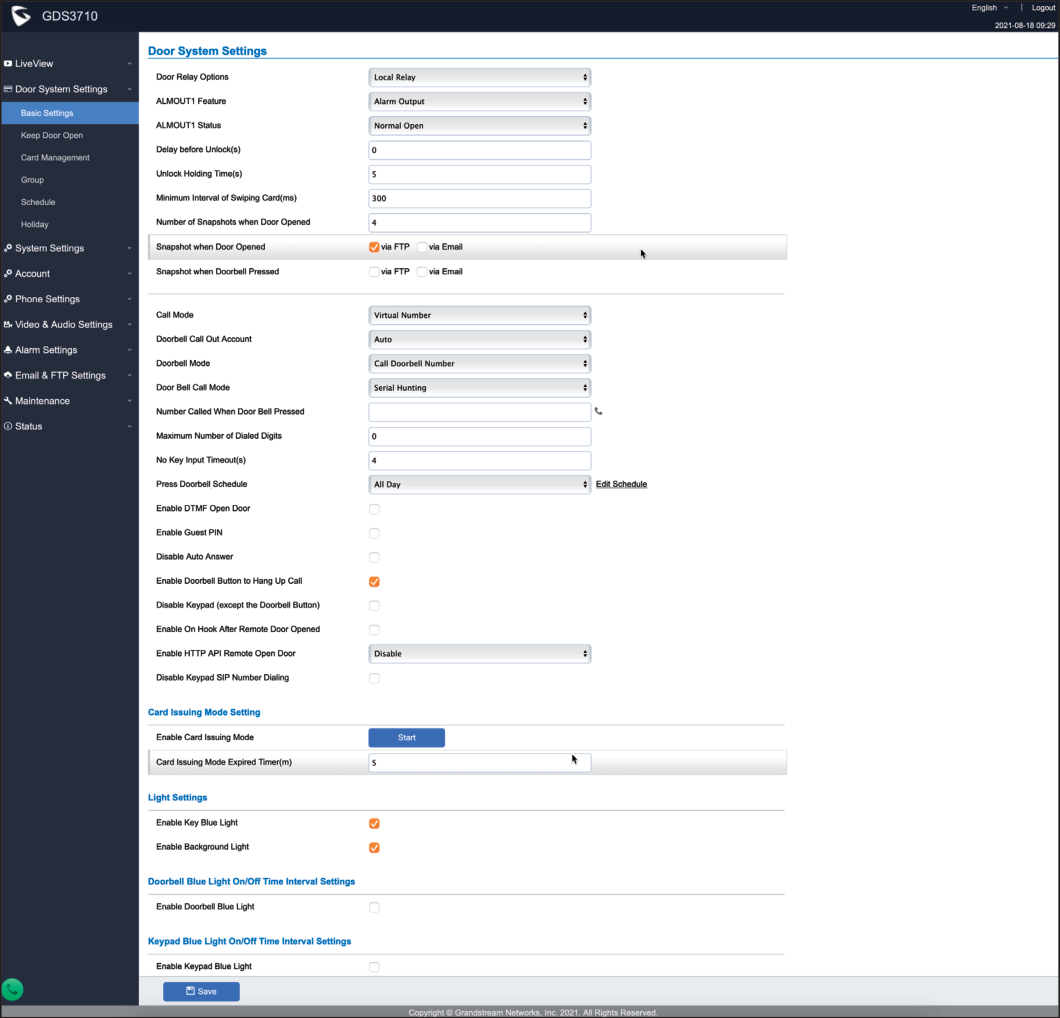

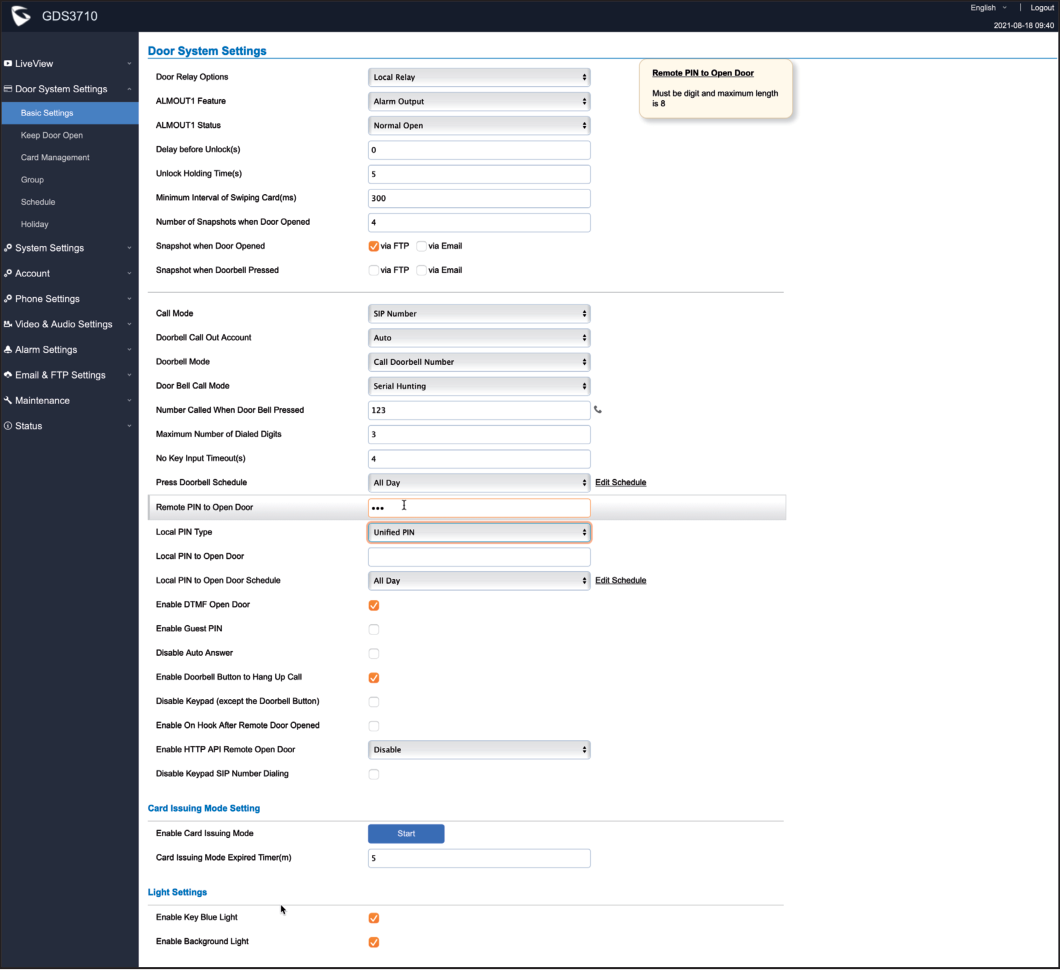

1. Navigate to Door System Settings → Basic Settings

2. Configure the following settings:

Field	Value
Call Mode	SIP Number
Number Called When Doorbell Pressed	Enter a number to be dialed (e.g., 123)
Maximum Number of Dialed Digits	Match the digit count of the number above (e.g., 3 for 123)
Remote Pin to Open Door	Choose a code to remotely open the door from Microsoft Teams
Enable DTMF Open Door	✅ Enable

3. Click ‘Save’ when done

---

Step 3: Configure SIP Account

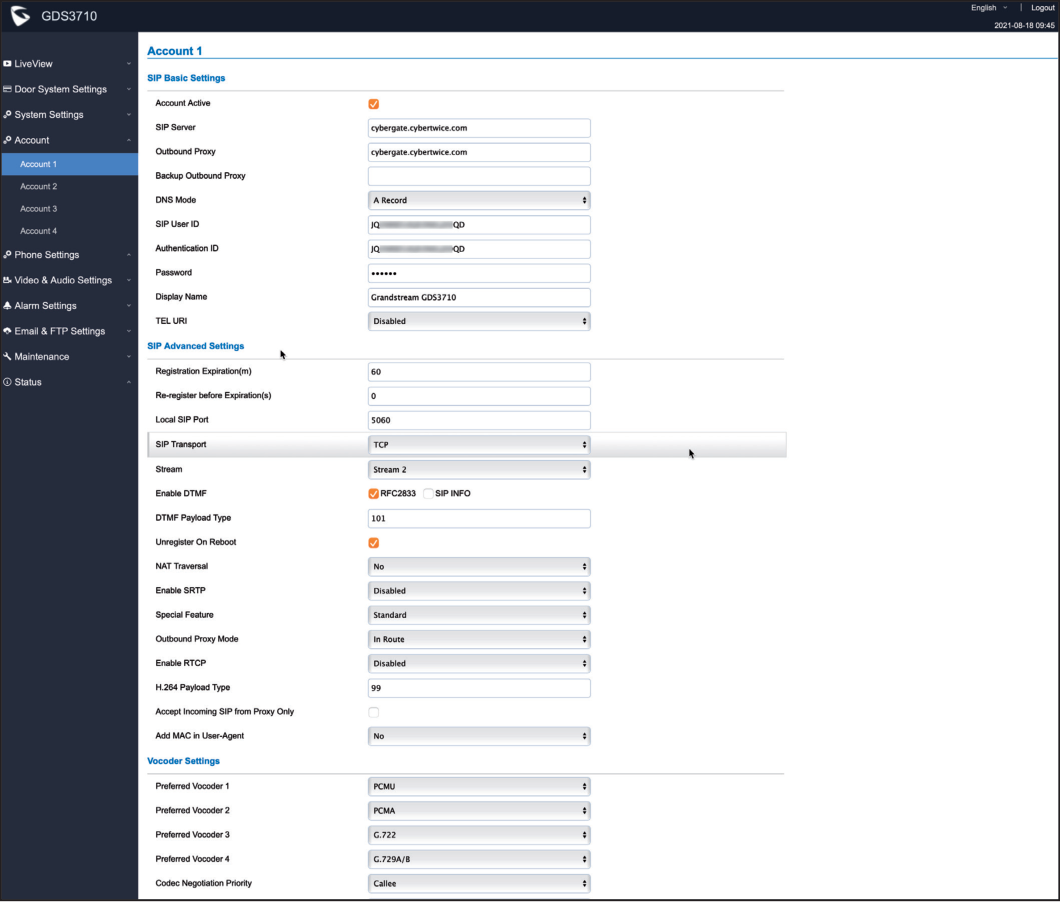

1. Navigate to Account → Account 1

2. Configure the following settings:

SIP Basic Settings

Field	Value
Account Active	✅ Enable
SIP Server	cybergate.cybertwice.com
Outbound Proxy	cybergate.cybertwice.com
SIP User ID	Use the Username from CyberGate Management Portal
Authentication ID	Use the Username from CyberGate Management Portal
Password	Use the Password from CyberGate Management Portal
Display Name	Descriptive name for this Grandstream

SIP Advanced Settings

Field	Value
SIP Transport	TCP

3. Click ‘Save’ when done

---

Step 4: Verify Registration

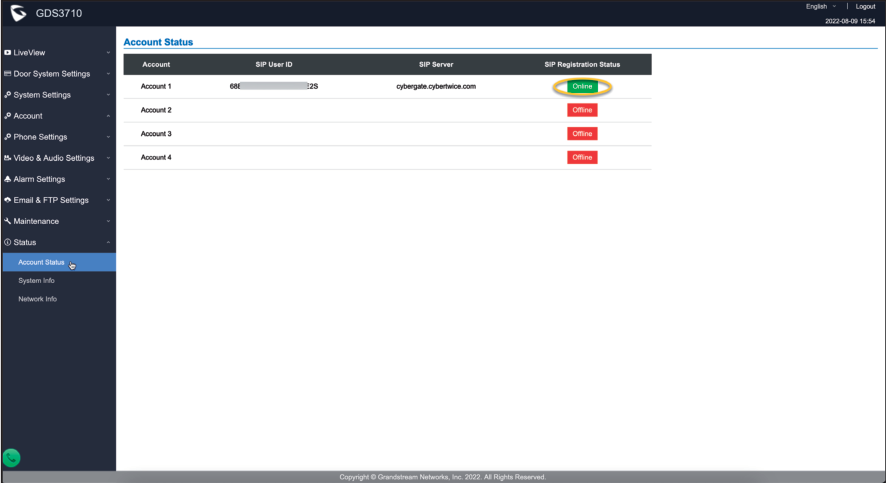

1. Navigate to Status → Account Status

2. If the provided SIP information is correct, Account 1 should display SIP Registration Status: ‘Online’

Troubleshooting: If the status doesn’t show ‘Online’, check the account and server details for possible typos.

---

Step 5: Configure Multi-ring Group

Pressing the call button on the Grandstream will initiate a call to the number configured in the Door System Settings (e.g., 123). Since this number is not a valid Teams user, you must configure a Multi-ring group to route calls to Teams users.

1. Navigate to: https://admin.cybergate.cybertwice.com

2. Log in using a Microsoft account with admin privileges

3. Navigate to the Multi-ring Settings menu

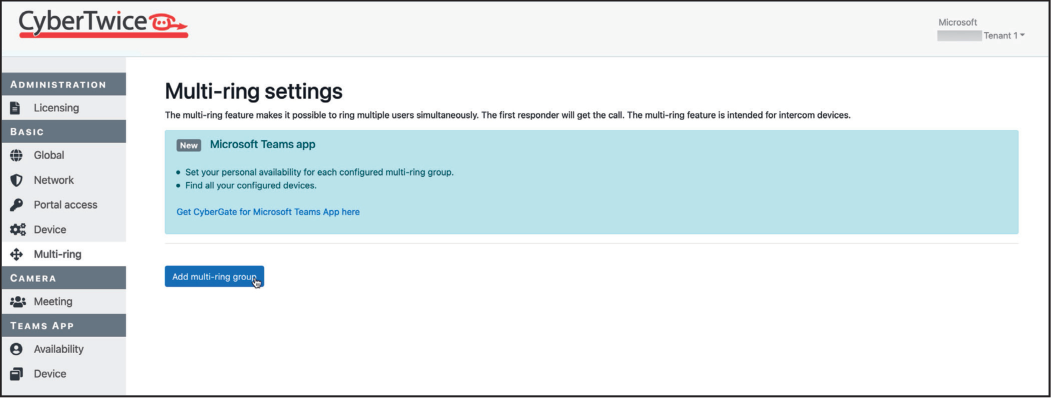

4. Click the blue ‘Add multi-ring group’ button

5. Configure the following:

Field	Value
Name	Enter the ‘Number Called When Doorbell Pressed’ from the Grandstream (e.g., 123)
Description	Describe this Multi-ring group

6. Click ‘Save’

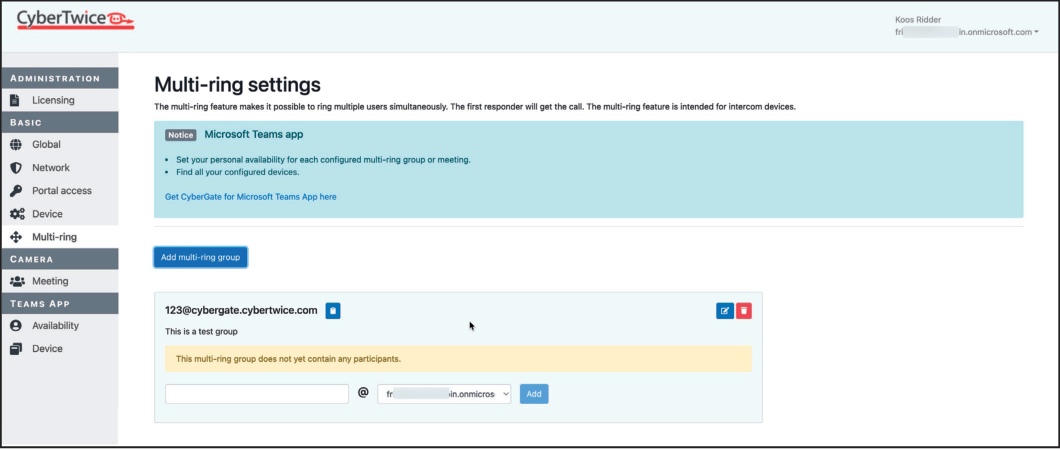

7. Add the Teams users you want to be notified when someone rings the doorbell

Note: Use only the first part of the Teams username (without the domain name) — the domain will be added automatically.

---

Testing the Configuration

Configuration is now complete! Here’s what happens when someone presses the call button:

1. The Grandstream places a call to CyberGate using the configured number (e.g., 123)
2. CyberGate answers the call and recognizes 123 as a Multi-ring group
3. CyberGate calls all Teams users in this group

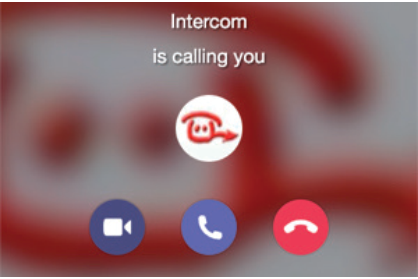

4. The first Teams user to answer (by clicking the camera symbol) is connected to the Grandstream
5. The call is established and video displays within approximately 3 seconds

Opening the Door from Teams

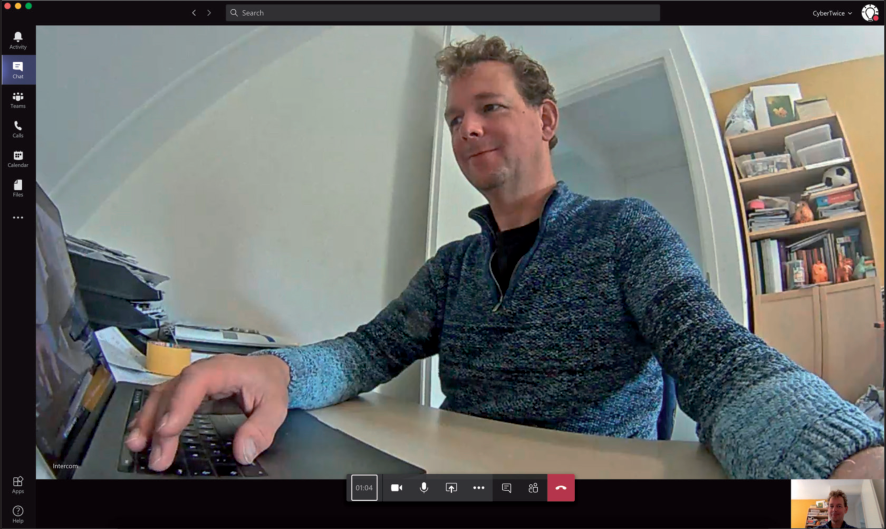

1. During the call, click the Dial pad symbol in the call screen
2. Enter the ‘Remote Pin to Open Door’ code configured earlier
3. This triggers the relay in the Grandstream and opens the door

---

Secure Communication over SIP-TLS

For encrypted communication with CyberGate, modify the configuration as follows:

Enable TLS and SRTP

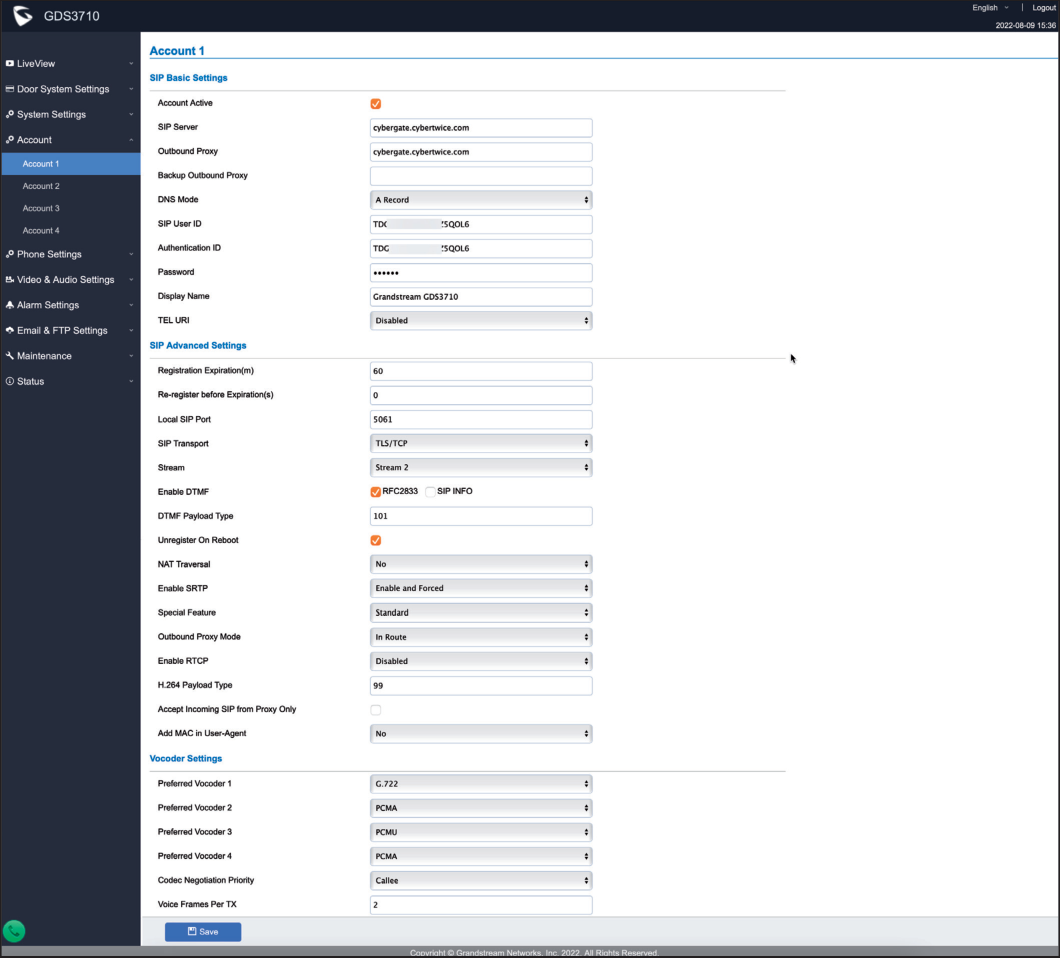

1. Navigate to Account → Account 1

2. Modify the following settings in SIP Advanced Settings:

Field	Value
Local SIP Port	5061
SIP Transport	TLS
Enable SRTP	Enable and Forced

3. Click ‘Save’

Verify Secure Connection

Check the registration status in Status → Account Status to confirm the secure connection.

All SIP and audio traffic to/from CyberGate will now be encrypted.

---

Quick Reference

CyberGate Connection Details

Setting	Value
SIP Server	cybergate.cybertwice.com
Outbound Proxy	cybergate.cybertwice.com
SIP Transport (Standard)	TCP
SIP Transport (Secure)	TLS
Local SIP Port (Secure)	5061
SRTP (Secure)	Enable and Forced

---

Appendix - CyberGate Teams App

Requirements

To use the CyberGate App, you need a subscription to one of the following CyberGate SaaS solutions:

• ✅ CyberGate for IP Cameras with Teams
• ✅ CyberGate for IP Paging with Teams
• ✅ CyberGate for IP Intercoms with Teams

App Features Overview

The CyberGate Teams app provides three main features:

Feature	Description
Availability	Set your availability status in Multi-ring groups
Devices	View device status and initiate calls with one click
Door Open	Open doors during calls with a single button click

---

Installation

How to Install

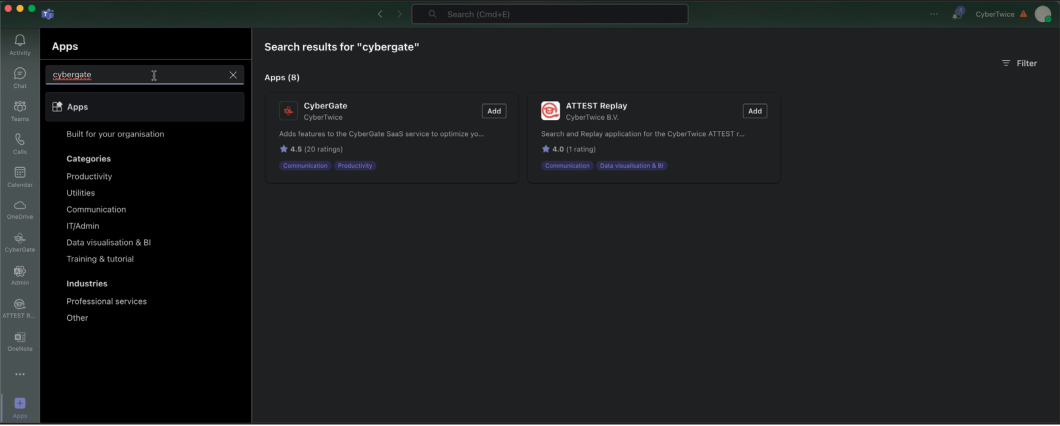

1. Open Microsoft Teams and click on the ‘Apps’ button in the sidebar

2. Search for ‘cybergate’

3. Click ‘Add’ to add CyberGate to Microsoft Teams

Note: You may be asked to provide consent for basic permissions (View your basic profile, Maintain access to data you have given it access to). Accept these permissions to use the app.

4. After installation, the CyberGate app will open and show the availability menu

5. Pin the app (recommended): Right-click on the CyberGate icon and select ‘Pin’

---

Feature 1: Availability

How It Works

The CyberGate app uses the same credentials as Microsoft Teams and automatically retrieves information about Multi-ring groups you belong to.

Example Scenario

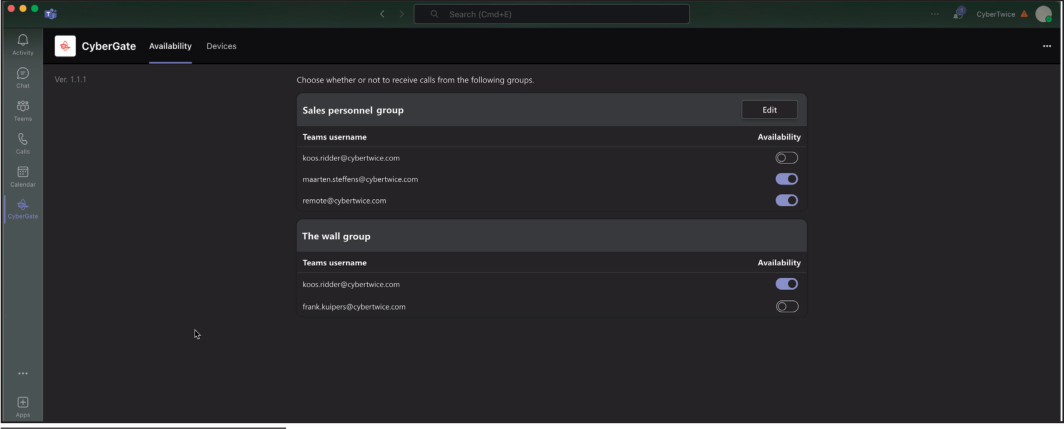

In this example, the user koos.ridder@cybertwice.com is part of two Multi-ring groups:

Group	Members	User Role
Sales personnel group	3 users	Supervisor (*)
The wall group	2 users	Normal user

User Roles

Role	Permissions
Supervisor	Can set availability for ALL users in the group, can add/remove users
Normal User	Can only set their OWN availability status

Availability Status

Status	Effect
Available	You can be called by CyberGate
Unavailable	You won’t be called by CyberGate

Note: Availability status changes take effect immediately.

Tip: To configure the supervisor role for a Multi-ring group, use the CyberGate Management Portal.

---

Feature 2: Devices

How It Works

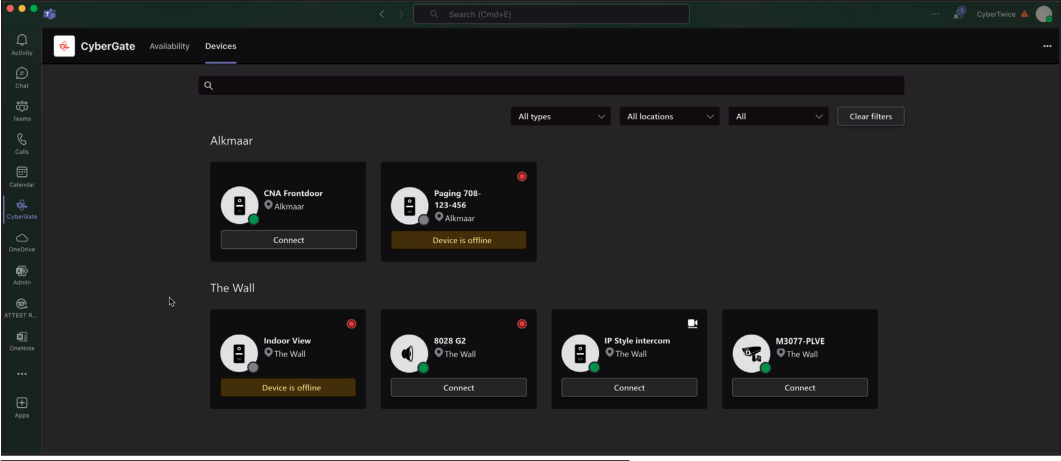

The Devices menu shows an overview of all configured devices in your Tenant, sorted by location. You can filter results to find specific devices.

Device Tile Information

Each device tile displays:

Information	Description
Device Type	Intercom, camera, or audio/paging
Device Name	Configured name of the device
Online Status	Whether the device is online or offline
Recording Status	Whether recording is enabled
Two-Way Video	Whether two-way video is configured

Connect Button

If a device is configured to receive calls from Microsoft Teams, a Connect button will appear. Clicking this button initiates a call to the device.

Note: The devices shown to a user can be limited using the Device access settings in the CyberGate Management Portal.

---

Feature 3: Door-Open Button

Introduction

During a call between the intercom and a Teams user, you can easily open the door by clicking a button on the sidebar.

How to Activate

Step 1: Configure Open Door Code

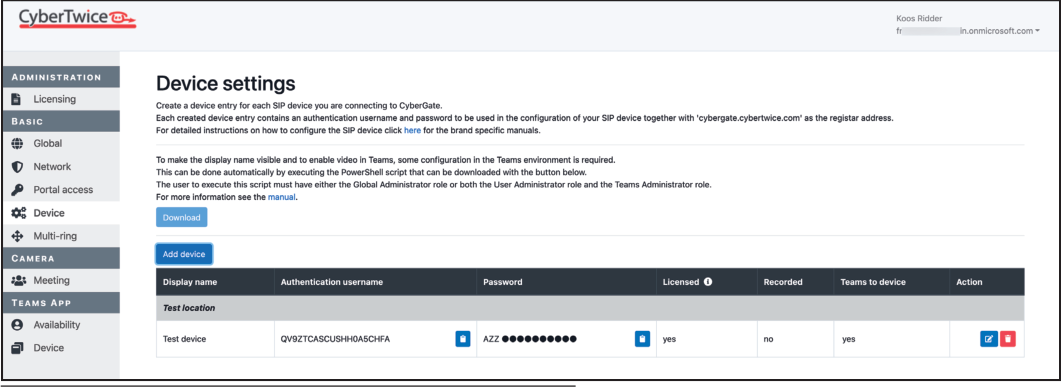

1. Log in to the CyberGate Management Portal

2. Navigate to Basic → Device

3. Click the blue edit button to open device details

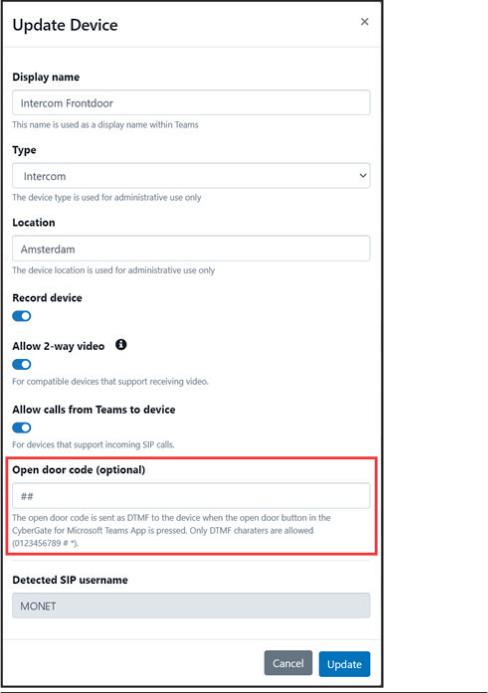

4. Fill in the ‘Open door code’

Important: The ‘Open door code’ must match the configured open door code in the intercom device!

5. Click the blue ‘Update’ button

Step 2: Add CyberGate to a Call

1. Make a call from the intercom to your Teams client and accept the call

2. Click on the ‘Apps’ icon in the top bar

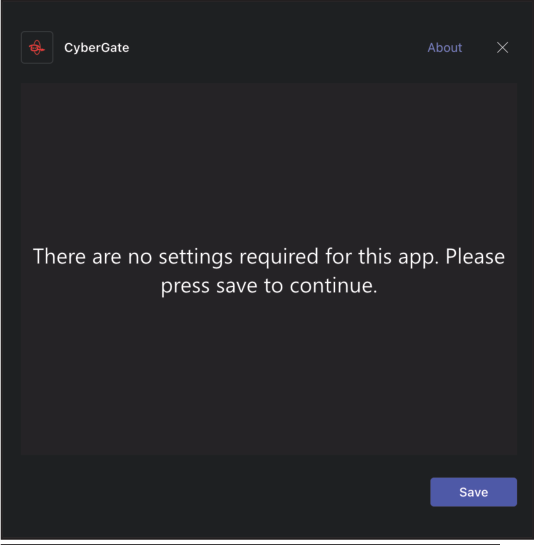

3. Add CyberGate — a dialog will open

4. Press ‘Save’ to continue

Step 3: Use the Door-Open Button

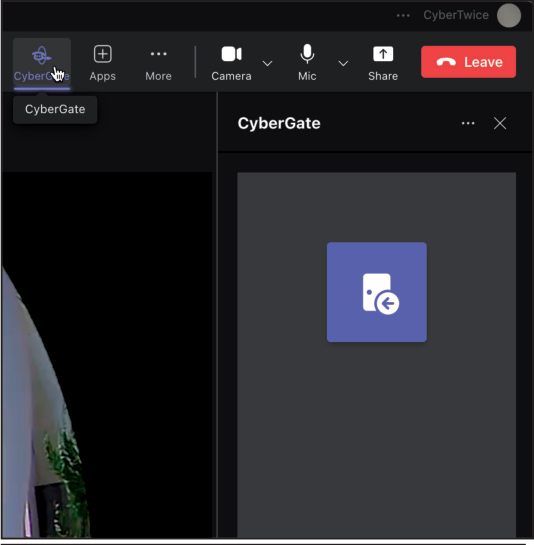

1. A sidebar opens on the left of the call window with the Open door button

2. Click the button to open the door

3. End the call when finished

Tip: The Open door button can be added to all future calls by clicking on the CyberGate icon in the top bar during any call.

---

Document History

Version	Date	Author	Change
1.0.0	2021-08-18	KR	Initial version
1.0.1	2021-09-15	KR	Textual modifications
1.0.2	2022-08-30	KR	Added Secure Communication (SIP-TLS / SRTP)
1.0.3	2023-10-25	KR	Added compatible device GDS3712
1.0.4	2024-10-09	KR	Updated screenshots
1.0.5	2024-11-13	KR	Fixed text and added CyberGate app appendix
